Quality Module Install error
I'm trying to assess the suitability of using Aras for Quality Management in my organization and am unable to install that module. I've installed successfully Innovator 12 and the sample database; however, when I go to install the Quality module from the Aras Update utility it fails with the error at bottom. I've looked on the forum but cannot find similar failures. Any help that anyone can provide would be greatly appreciated. Thanks! Keith <snip> Import package 'com.aras.innovator.solution.QMS_QS' failed with message: Server error Request: <Item type="Identity" id="CA6D245B9B224A6288F056B33E02097E" action="add" doGetItem="0"><description>Quality Department</description><is_alias>0</is_alias><name>Quality</name><Relationships /></Item> Responce: <SOAP-ENV:Envelope xmlns:SOAP-ENV="">schemas.xmlsoap.org/.../"><SOAP-ENV:Body><SOAP-ENV:Fault xmlns:af="">www.aras.com/.../faultcode><faultstring><![CDATA[Identity with Name 'Quality' already exists.]]></faultstring><detail><af:legacy_detail><![CDATA[Identity with Name 'Quality' already exists.]]></af:legacy_detail><af:exception message="Identity with Name 'Quality' already exists." type="Aras.Server.Core.PropertiesAreNotUniqueException"><af:innerException message="Violation of UNIQUE KEY constraint." type="Aras.Server.Core.DBUniqueConstraintViolationException"><af:innerException message="Violation of UNIQUE KEY constraint 'C5'. Cannot insert duplicate key in object 'innovator.IDENTITY'. The duplicate key value is (Quality).
The statement has been terminated." type="System.Data.SqlClient.SqlException" /></af:innerException></af:exception><af:item type="Identity" id="CA6D245B9B224A6288F056B33E02097E" xpath="Item"><af:property name="name" value="Quality" /></af:item></detail></SOAP-ENV:Fault></SOAP-ENV:Body></SOAP-ENV:Envelope> Updating com.aras.innovator.solution.QMS_QS to failed release status </snip>
Aras Innovator Installation
Hallo everyone, I am having trouble installing the Aras Innovator. Here is what I am using: - Administrator Logon Access to IIS Server (Virtual Server) - SQL Express Installation with admin privileges - License Key issued from Aras I used the complete installation method as mentioned in this tutorial video: https://www.aras.com/resources/demos/aras-innovator-11-software-installation-tutorial The Client used is the server as well in this case. However I cannot complete the installation progress with the settings, that were put in when "Configure Database" appears. Here is what I have to choose: - Database Server: I am using a created Database Server called "DLS" So it looks like: Database Server: (local)\DLS When selecting "Create a new database" at Configuration Options, I have to choose "Server authentication using the Login ID and password below" afterwards. When selecting Login ID I put in: sa When selecting Password I put in: Password2018! as selected when creating the login and password. After selecting "Connect..." the next options to choose are Database Login Options. Here I choose the following Logins: DB owner login: innovator Password: Password2018! DB client login: innovator Password: Password2018! as created in SQL Express After selecting Configure Database a window pops up: Database InnovatorSolutions already exists. So then I tried using the option "Populate an exisiting database" in the configuration options. I chose connect for the databse login options and then configure database. Like in the tutorial video the window says: The Innovator database will be installed and configured now. Would you loke to proceed? After choosing "Yes" the following window pops up: It is required that populated database should have user with name "innovator_regular". This user must be associated with any login in SQL Server. So then I tried "Use an existing database" in the configurations options. After selecting The innovator database will be installed and configured now. Would you like to proceed? I chose Yes. After that I can choose Next at the bottom and afterwards "Install". Setup completes and then there a few security settings which need to be selected in the browsers. After that I user the Set .Net Security Tool and choose the URL for the Aras Innovator Installation mentioned in the tutorial video. The log file shows success. Now when trying opening the link localhost... which is also mentioned in the tutorial video the browser shows the following: HTTP Error 404.0 - Not Found Can you help me now? What can I do to successfully test the IE / Mozilla browser?How to roll-up cycle times and costs of MBOM in Aras MPP Process Plans?
At the moment, we can add cycle times and setup times to operations, and cycle times to steps. But this information does not display anywhere once entered. That is fine, but at least if there was the ability to roll-up the cycle times of all the operations in the Process plan, taht would be great. Has anybody attempted this on their isntances? On a similar vein, the phantoms and MBOM only parts consumed have costs associated with them (for ex. I intend to have 'Material' category parts in the MBOM (we use polyureethanes for casting) as the quantity and hence the cost of the material is a process parameter and not an EBOM item. Is there any way to roll-up the 'MBOM cost'? Would appreciate if anybody could point me in the direction of how to set this up Regards Sachin
Innovator12 installed but eroor:500 occured
Hi, I installed Innovator12 in Windows server 16, I followed the custom installation process and installation is done but when i try to accces through mozilla firefox, Error: Cannot access OAuth Server due to 500 (Internal Server Error) occured. Previously, I have Innovator11 SP12 but i uninstalled due to curious about Innovator12. what can i do to resolve this issue. Thanking you.Unable to access ARAS PLM(HTTP Error 500.19 - Internal Server Error)
Hi, I have installed ARAS PLM and while tring to access it. I am experiencing following issue. Please help in resolving this issue The requested page cannot be accessed because the related configuration data for the page is invalid. Detailed Error Information: Module IIS Web Core Notification BeginRequest Handler Not yet determined Error Code 0x80070021 Config Error This configuration section cannot be used at this path. This happens when the section is locked at a parent level. Locking is either by default (overrideModeDefault="Deny"), or set explicitly by a location tag with overrideMode="Deny" or the legacy allowOverride="false". Config File \\?\C:\Program Files (x86)\Aras\Innovator\Innovator\web.config Requested URL localhost:80/InnovatorServer Physical Path C:\Program Files (x86)\Aras\Innovator\Innovator Logon Method Not yet determined Logon User Not yet determined Config Source: 3: <system.webServer> 4: <handlers accessPolicy="Read, Script" /> 5: <directoryBrowse enabled="false" /> More Information: This error occurs when there is a problem reading the configuration file for the Web server or Web application. In some cases, the event logs may contain more information about what caused this error. Regards, Adarsh

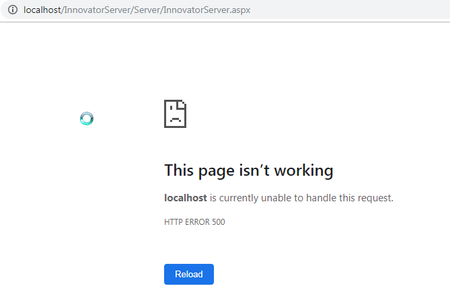

unable to open http://localhost/InnovatorServer/Server/InnovatorServer.aspx in browser
Hi there! I have installed innovator 11 on windows 7. Mircosoft SQL SERVER - 14. Configured IIS from Built-in component of Windows 7 - IIS version is 7.5( as per Microsoft document ) IIS is correctly configured. I have created helloworld asp page and placed in in wwwroot just to be sure IIS runs smoothly and the asp page does run. .However when accessed localhost/.../InnovatorServer.aspx IIS throws the Error - This page isn’t working localhost is currently unable to handle this request. HTTP ERROR 500 Any help is highly appreciated. Thank you Regards, GautamEntered License Xml is not valid.
"Entered License Xml is not valid." This is the error I get when I cut and past the license information into the dialog box during installation. I've tried getting new keys. I've tried removing the comment from the XML. I've tried copying the license into Notepad first to remove any special characters.Login Authentication Failed Innovator 12
Hello Everyone, I am new to Innovator, but am very eager to get up and running. I am in the process of setting up a development database of innovator. I have a Windows 10 Pro machine with a fresh install of SQL server 2017 express. I have installed Innovator 12 on top of that. I configured SQL to allow mixed authentication. When I go to login in for the first time, I get the aras innovator splash screen, but when I type in the default admin credentials described in the installer guide, I get failed login. It appears as though the credentials are invalid. So, then I attempt to use the db owner credentials that I made at setup, that gives me the same error. When I go to SSMS, I will login using the db owner credentials, and I can successfully login to the SQL server. For some reason, I cannot get a successful login from the main screen in innovator. Any thoughts? Thanks in advance!
HTTP Error 404.3 - Not Found after installation
I have Windows 10, Aras Innovator 12, IIS Version 10, Windows Server 1809, .NET Framework 4.8, ASP .NET 4.0.30319.0. When trying to access the website after the initial installation of Aras Innovator (option Configure only, no validations), I get this error: HTTP Error 404.3 - Not Found The page you are requesting cannot be served because of the extension configuration. If the page is a script, add a handler. If the file should be downloaded, add a MIME map. Do I need to configure something in IIS manager? (add a handler? If so, which one?) The activated handlers are OPTIONSVerbHandler, TRACEVerbHandler and StaticFile. In web.config, <authentication mode="Windows" /> is set and in applicationHost.config, <section name="windowsAuthentication" overrideModeDefault="Allow" /> is set, as well as: <sectionGroup name="system.webServer"> <section name="handlers" overrideModeDefault="Allow" /> <section name="modules" allowDefinition="MachineToApplication" overrideModeDefault="Allow" /> The following application pools are set to "Started" in IIS: Aras Conversion AppPool ASP.NET 4.0, Aras Innovator AppPool ASP.NET 4.0, Aras OAuth AppPool ASP.NET Core, Aras SelfServiceReporting AppPool ASP.NET 4.0, Aras Vault AppPool ASP.NET 4.0, DefaultAppPool. The authentication mode is configured on IIS components. Does anyone have an idea what I might be doing wrong? Thank you.
