Can we add multiple reverse relations targeting a single relation?
Hi, We have the following scenario: I have a custom itemtype which has relationships with different itemtypes like Part, Requirement, etc. Now I want to show the reverse relation on my custom item type pointing to Part and Requirement. On custom Itemtype we have one relationship that has the source itemtype as custom itemtype and related itemtype is null. On this single relationship can we add reverse relation using a Relationship View for both Part and Requirement, and more? If yes, how to add more than one Relationship View? Or if there is any other way that leads to showing the different itemtypes relation using a single relationship? Thanks in advance. Best regards Tanjum
MAC Policy Issue in ARAS 31 – Need Help with Access Restrictions
Hi all, I’m working on implementing access restrictions for the a Itemtype in ARAS 31. There are around 46 records, and I want to group them into 5 categories. Each category will be assigned to specific identities, allowing controlled access based on the record's classification. To achieve this, I started configuring MAC policies. However, I’ve run into a few issues: The fields I need are disabled in the MAC Policy Condition Editor. User-defined properties are not accessible in the condition editor either. Has anyone faced similar challenges or found a workaround for this? Any help or guidance would be greatly appreciated! Thanks, SaliniError loading Recipient Relationship tab of DCO and EDR change management giving error when refreshing the CM tab
Hi, when opening ECO/EDR the first time there is no Proplem opening the Recipients Relationship tap, but when opening another a second ECO/EDR the recipients Relationship tap doesnt load. when trying to refresh the item it gives an error message 'The method "cui_ivicb_refresh_click" failed.' only when changing to another relationship tap i can click on refresh with no error, then if changed back to Recipients the recipients list will appear. this issue was not there before the updates were done on .NET code. please help me if you have an idea about this problem and how to approach it. thanks
How to change the position of a Relationship Accordion tab
I needed to make a tab visible to certain identity. Therefore, I selected "Hide All" in the relationship types and used the CUI control to make a new tab. I need this tab to be all the way to right. Sort Order fields don't work, neither in the Relationship Type nor in cui_windowSection. Pictures belowUpload missing document relationship in Process Plan. "Add" statement doesn't work
I need to upload relationship between Operation Document and the Documents. As you can see from the picture below the hierarchy of Process Plan is: Process Plan--> Operation Number (which is `sort_order`, in this case it is 20)-->Document I have an excel sheet of the missing documents that need to show under an operation (20) The document relationship cannot by uploaded just to Operation because the operation 20 will exist under other Process Plans. However, under one process plan the operation number is unique, so in this case there will be only one operation with sort_order 20. The documents already exist, I just need them to be shown here. From the AML script I have the `get` command works. The code is below. <AML> <Item type="mpp_processPlan" action="get"> <item_number>080824-S10</item_number> <Relationships> <Item type="mpp_Operation" action="get"> <sort_order>20</sort_order> <Relationships> <Item type="mpp_operationDocument" action="get"> </Item> </Relationships> </Item> </Relationships> </Item> </AML> However, in the above script in the line `<Item type="mpp_operationDocument" action="get">` when `action = Update` it won't work. Basically the following doesn't work <AML> <Item type="mpp_processPlan" action="get"> <item_number>080824-S10</item_number> <Relationships> <Item type="mpp_Operation" action="get"> <sort_order>20</sort_order> <Relationships> <Item type="mpp_operationDocument" action="Update"> <item_number>MADL074161</item_number> </Item> </Relationships> </Item> </Relationships> </Item> </AML> Result of scriopt with all `action=get` [embed:dc8ab71f-3b98-42d9-b0f6-e21e02a0f8e2:b4eb42d4-78c3-44de-b633-1a7d250b7129:type=text&text=%3CSOAP-ENV%3AEnvelope%20xmlns%3ASOAP-ENV%3D%22http%3A%2F%2Fschemas.xmlsoap.org%2Fsoap%2Fenvelope%2F%22%3E%0A%3CSOAP-ENV%3ABody%3E%0A%3CResult%3E%0A%3CItem%20type%3D%22mpp_ProcessPlan%22%20typeId%3D%224E030A4723224002B3E94F40F01AC1DE%22%20id%3D%22767F3FCDCC0F4CCF95F3CA3D9DB9D391%22%3E%0A%3Cconfig_id%20keyed_name%3D%22080824-S10%22%20type%3D%22mpp_ProcessPlan%22%3E767F3FCDCC0F4CCF95F3CA3D9DB9D391%3C%2Fconfig_id%3E%0A%3Ccreated_by_id%20keyed_name%3D%22Data%20Migration%22%20type%3D%22User%22%3E08880028FF8C43D48CB02B44EB74B127%3C%2Fcreated_by_id%3E%0A%3Ccreated_on%3E2024-02-20T11%3A49%3A02%3C%2Fcreated_on%3E%0A%3Ccurrent_state%20name%3D%22Released%22%20keyed_name%3D%22Released%22%20type%3D%22Life%20Cycle%20State%22%3E7109CDD337C84AFF87F55B21CCAC34AC%3C%2Fcurrent_state%3E%0A%3Cdescription%3E%3C%2Fdescription%3E%0A%3Cgeneration%3E1%3C%2Fgeneration%3E%0A%3Chas_change_pending%3E0%3C%2Fhas_change_pending%3E%0A%3Cid%20keyed_name%3D%22080824-S10%22%20type%3D%22mpp_ProcessPlan%22%3E767F3FCDCC0F4CCF95F3CA3D9DB9D391%3C%2Fid%3E%0A%3Cis_current%3E1%3C%2Fis_current%3E%0A%3Cis_released%3E1%3C%2Fis_released%3E%0A%3Ckeyed_name%3E080824-S10%3C%2Fkeyed_name%3E%0A%3Clocation%3E10%3C%2Flocation%3E%0A%3Cmajor_rev%3EPP000%3C%2Fmajor_rev%3E%0A%3Cmodified_on%3E2024-02-20T11%3A49%3A02%3C%2Fmodified_on%3E%0A%3Cname%3ESlitter%20Knife%20Arm%2C%20Rotary%20Tip%2C%2035%22%20Ring%2C%20C%2FR%3C%2Fname%3E%0A%3Cnew_version%3E1%3C%2Fnew_version%3E%0A%3Cnot_lockable%3E0%3C%2Fnot_lockable%3E%0A%3Cowned_by_id%20keyed_name%3D%22Mfg%20Eng%22%20type%3D%22Identity%22%3ED46B8ECBDB0C4D94BFF7A93D36FAB474%3C%2Fowned_by_id%3E%0A%3Cpermission_id%20keyed_name%3D%22Process%20Plan%20-%20Released%22%20type%3D%22Permission%22%3EE4EB045B2622409BA09AC91778FAE18C%3C%2Fpermission_id%3E%0A%3Crelease_date%3E2024-01-29T00%3A00%3A00%3C%2Frelease_date%3E%0A%3Cstate%3EReleased%3C%2Fstate%3E%0A%3Citem_number%3E080824-S10%3C%2Fitem_number%3E%0A%3Citemtype%3E4E030A4723224002B3E94F40F01AC1DE%3C%2Fitemtype%3E%0A%3CRelationships%3E%0A%3CItem%20type%3D%22mpp_Operation%22%20typeId%3D%2291B674D7C7AF47F99CA1C2FB26C38DBF%22%20id%3D%2277DD37200C7B4858833A6D6D8A48F4FA%22%3E%0A%3Cconfig_id%20keyed_name%3D%2220%22%20type%3D%22mpp_Operation%22%3E77DD37200C7B4858833A6D6D8A48F4FA%3C%2Fconfig_id%3E%0A%3Ccreated_by_id%20keyed_name%3D%22Data%20Migration%22%20type%3D%22User%22%3E08880028FF8C43D48CB02B44EB74B127%3C%2Fcreated_by_id%3E%0A%3Ccreated_on%3E2024-02-20T12%3A06%3A27%3C%2Fcreated_on%3E%0A%3Ccycle_time%3E60%3C%2Fcycle_time%3E%0A%3Cdescription%20xml%3Alang%3D%22en%22%3EMC-1B%20MC2%20CNC%20Machine%20Centre%20S10%3C%2Fdescription%3E%0A%3Cgeneration%3E1%3C%2Fgeneration%3E%0A%3Cid%20keyed_name%3D%2220%22%20type%3D%22mpp_Operation%22%3E77DD37200C7B4858833A6D6D8A48F4FA%3C%2Fid%3E%0A%3Cis_current%3E1%3C%2Fis_current%3E%0A%3Cis_released%3E0%3C%2Fis_released%3E%0A%3Ckeyed_name%3E20%3C%2Fkeyed_name%3E%0A%3Cmajor_rev%3EPP000%3C%2Fmajor_rev%3E%0A%3Cmodified_on%3E2024-02-20T12%3A06%3A27%3C%2Fmodified_on%3E%0A%3Cname%20xml%3Alang%3D%22en%22%3EMC-1B%3C%2Fname%3E%0A%3Cnew_version%3E1%3C%2Fnew_version%3E%0A%3Cnmg_erp_name%3EMC-1B%3C%2Fnmg_erp_name%3E%0A%3Cnmg_location_id%3E10%3C%2Fnmg_location_id%3E%0A%3Cnot_lockable%3E0%3C%2Fnot_lockable%3E%0A%3Cpermission_id%20keyed_name%3D%22Process%20Plan%20-%20Released%22%20type%3D%22Permission%22%3EE4EB045B2622409BA09AC91778FAE18C%3C%2Fpermission_id%3E%0A%3Csetup_time%3E0%3C%2Fsetup_time%3E%0A%3Csource_id%20keyed_name%3D%22080824-S10%22%20type%3D%22mpp_ProcessPlan%22%3E767F3FCDCC0F4CCF95F3CA3D9DB9D391%3C%2Fsource_id%3E%0A%3Cwi_details%20xml%3Alang%3D%22en%22%3E%3C%2Fwi_details%3E%0A%3Csort_order%3E20%3C%2Fsort_order%3E%0A%3CRelationships%3E%0A%3CItem%20type%3D%22mpp_OperationDocument%22%20typeId%3D%2238BA57E0616B49A58317C267E436AE4C%22%20id%3D%22106F5032EE7F4C5497717888370A3BB6%22%3E%0A%3Cconfig_id%20keyed_name%3D%22106F5032EE7F4C5497717888370A3BB6%22%20type%3D%22mpp_OperationDocument%22%3E106F5032EE7F4C5497717888370A3BB6%3C%2Fconfig_id%3E%0A%3Ccreated_by_id%20keyed_name%3D%22Data%20Migration%22%20type%3D%22User%22%3E08880028FF8C43D48CB02B44EB74B127%3C%2Fcreated_by_id%3E%0A%3Ccreated_on%3E2024-02-20T12%3A36%3A02%3C%2Fcreated_on%3E%0A%3Cgeneration%3E1%3C%2Fgeneration%3E%0A%3Cid%20keyed_name%3D%22106F5032EE7F4C5497717888370A3BB6%22%20type%3D%22mpp_OperationDocument%22%3E106F5032EE7F4C5497717888370A3BB6%3C%2Fid%3E%0A%3Cis_current%3E1%3C%2Fis_current%3E%0A%3Cis_released%3E0%3C%2Fis_released%3E%0A%3Ckeyed_name%3E106F5032EE7F4C5497717888370A3BB6%3C%2Fkeyed_name%3E%0A%3Cmajor_rev%3EA%3C%2Fmajor_rev%3E%0A%3Cmodified_on%3E2024-02-20T12%3A36%3A02%3C%2Fmodified_on%3E%0A%3Cnew_version%3E1%3C%2Fnew_version%3E%0A%3Cnot_lockable%3E0%3C%2Fnot_lockable%3E%0A%3Cpermission_id%20keyed_name%3D%22Process%20Plan%20-%20Released%22%20type%3D%22Permission%22%3EE4EB045B2622409BA09AC91778FAE18C%3C%2Fpermission_id%3E%0A%3Crelated_id%20keyed_name%3D%22MADL074152%22%20type%3D%22Document%22%3E%0A%3CItem%20type%3D%22Document%22%20typeId%3D%22B88C14B99EF449828C5D926E39EE8B89%22%20id%3D%22BD9ECB6D5C5D4AEEBC0ED65680C5505C%22%3E%0A%3Cclassification%3EManufacturing%20Aid%3C%2Fclassification%3E%0A%3Cconfig_id%20keyed_name%3D%22MADL074152%22%20type%3D%22Document%22%3EBD9ECB6D5C5D4AEEBC0ED65680C5505C%3C%2Fconfig_id%3E%0A%3Ccreated_by_id%20keyed_name%3D%22NMIS%20_MADL%22%20type%3D%22User%22%3E41E9090B65234C899CAFF690C7C0F562%3C%2Fcreated_by_id%3E%0A%3Ccreated_on%3E2024-02-19T11%3A12%3A07%3C%2Fcreated_on%3E%0A%3Ccurrent_state%20name%3D%22Released%22%20keyed_name%3D%22Released%22%20type%3D%22Life%20Cycle%20State%22%3E8EDE39438A7E4A56A1B4A9D07EF4A2FF%3C%2Fcurrent_state%3E%0A%3Cdescription%3E35%22%20SLITTER%20ARM%20C%2FR%3C%2Fdescription%3E%0A%3Ceffective_date%3E2018-11-16T14%3A35%3A00%3C%2Feffective_date%3E%0A%3Cgeneration%3E1%3C%2Fgeneration%3E%0A%3Chas_change_pending%3E0%3C%2Fhas_change_pending%3E%0A%3Chas_files%3E1%3C%2Fhas_files%3E%0A%3Cid%20keyed_name%3D%22MADL074152%22%20type%3D%22Document%22%3EBD9ECB6D5C5D4AEEBC0ED65680C5505C%3C%2Fid%3E%0A%3Cis_current%3E1%3C%2Fis_current%3E%0A%3Cis_released%3E1%3C%2Fis_released%3E%0A%3Cis_template%3E0%3C%2Fis_template%3E%0A%3Ckeyed_name%3EMADL074152%3C%2Fkeyed_name%3E%0A%3Cmajor_rev%3EV007%3C%2Fmajor_rev%3E%0A%3Cmodified_on%3E2007-07-09T08%3A17%3A00%3C%2Fmodified_on%3E%0A%3Cname%3E080824%3C%2Fname%3E%0A%3Cnew_version%3E0%3C%2Fnew_version%3E%0A%3Cnmg_department%3EManufacturing%3C%2Fnmg_department%3E%0A%3Cnmg_type%3EProgram%20%28CAD%2FCAM%29%3C%2Fnmg_type%3E%0A%3Cnot_lockable%3E0%3C%2Fnot_lockable%3E%0A%3Cowned_by_id%20keyed_name%3D%22Mfg%20Eng%22%20type%3D%22Identity%22%3ED46B8ECBDB0C4D94BFF7A93D36FAB474%3C%2Fowned_by_id%3E%0A%3Cpermission_id%20keyed_name%3D%22Released%20Document%22%20type%3D%22Permission%22%3E74C205C37E7C4D56BBBE99B52B28431E%3C%2Fpermission_id%3E%0A%3Crelease_date%3E2018-11-16T14%3A35%3A00%3C%2Frelease_date%3E%0A%3Cstate%3EReleased%3C%2Fstate%3E%0A%3Citem_number%3EMADL074152%3C%2Fitem_number%3E%0A%3Citemtype%3EB88C14B99EF449828C5D926E39EE8B89%3C%2Fitemtype%3E%0A%3C%2FItem%3E%0A%3C%2Frelated_id%3E%0A%3Csource_id%20keyed_name%3D%2220%22%20type%3D%22mpp_Operation%22%3E77DD37200C7B4858833A6D6D8A48F4FA%3C%2Fsource_id%3E%0A%3C%2FItem%3E%0A%3C%2FRelationships%3E%0A%3C%2FItem%3E%0A%3C%2FRelationships%3E%0A%3C%2FItem%3E%0A%3C%2FResult%3E%0A%3C%2FSOAP-ENV%3ABody%3E%0A%3C%2FSOAP-ENV%3AEnvelope%3E]I want to see all item bout related item in relationship tab
I developing a request form When I make a Item to request I want to a view a bout the item that I can request I manage the Item list by a Item type And I make a relationship type to connect the request item type and item list item type I need how to view all of the Item in my relationship tab bout the related item type I using aras 12
ARAS REST API - How do I get properties of a RelationshipType
The Properties of an ItemType can be retrieved using the below URL /odata/ItemType('<<item_type_id>>')/Property But when we try to do the same for RelationshipType using the below URL, getting 404 not found error /odata/RelationshipType('<<relationship_type_id>>')/Property { "error": { "code": "NotFound", "message": "Property 'Property' of 'RelationshipType' itemtype not found" } } How do I retrieve properties of a RelationshipType using ARAS REST API?
How do I "edit"/"update" a Relationship instance using js or AML.

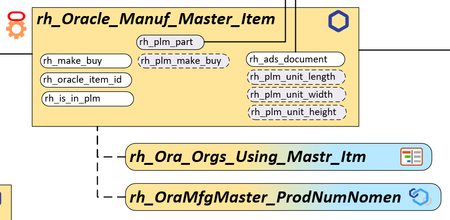

All, I am trying to "edit"/"update" the properties on a Non-Related Relationship; "rh_OraMfgMaster_ProdNumNomen". I must be missing something. I tried the following AML from AML Studio: <AML> <Item type="rh_Oracle_Manuf_Master_Item" action="edit" id="C323F3AB54D84E70B54D895158EE3CB7"> <Relationships> <Item type="rh_OraMfgMaster_ProdNumNomen" action="edit" where="[rh_OraMfgMaster_ProdNumNomen].source_id = 'C323F3AB54D84E70B54D895158EE3CB7'"> <RH_PRODUCT_CATEGORY_CODE>Z</RH_PRODUCT_CATEGORY_CODE> <RH_TRADE_BRAND_CODE>F</RH_TRADE_BRAND_CODE> </Item> </Relationships> </Item> </AML> <AML> <Item type="rh_Oracle_Manuf_Master_Item" action="edit" id="C323F3AB54D84E70B54D895158EE3CB7"> <Relationships> <Item type="rh_OraMfgMaster_ProdNumNomen" action="edit" id="3A40258510F24D1685B044270F4B296A"> <RH_PRODUCT_CATEGORY_CODE>Z</RH_PRODUCT_CATEGORY_CODE> <RH_TRADE_BRAND_CODE>F</RH_TRADE_BRAND_CODE> </Item> </Relationships> </Item> </AML> This does not work. I tried [Item type="rh_OraMfgMaster_ProdNumNomen" action="update"] and that did not work. I can delete the existing Relationship using: <AML> <Item type="rh_Oracle_Manuf_Master_Item" action="edit" id="C323F3AB54D84E70B54D895158EE3CB7"> <Relationships> <Item type="rh_OraMfgMaster_ProdNumNomen" action="delete" id="A9BB4FEB593F4D09A5427B108937B216"> </Item> </Relationships> </Item> </AML> And then Add a new Relationship instance (with 'hasProdNomen ' = "NO") with the updated data. let hasProdNomen = HasProductNomenclature(parentId); let arasAction = "edit"; if(hasProdNomen === "NO"){ arasAction = "add";} //let oracleMasterItem = inn.getItemById("rh_Oracle_Manuf_Master_Item",parentId); let prodNumNomen = inn.newItem("rh_OraMfgMaster_ProdNumNomen", arasAction); if(hasProdNomen === "YES"){ prodNumNomen.setAttribute("Where", "[rh_OraMfgMaster_ProdNumNomen].source_id = " + parentId); } prodNumNomen.setProperty(itemProductNumberPropName, prodNumItemNumber); prodNumNomen.setProperty(tradeBrandPropName, tradeBrand); prodNumNomen.setProperty(tradeBrandCodePropName, tradeBrandCode); prodNumNomen.setProperty(productCategoryPropName, prodCategory); prodNumNomen.setProperty(productCategoryCodePropName, prodCatCode); prodNumNomen.setProperty(numberOfPositionsPropName, numberOfPositions); //let prodNumNomenCnt = prodNumNomen.getItemCount(); //debugger; let cnt = -1; let prodNumNomenCheck = null; if(hasProdNomen === "NO"){ //debugger; item.addRelationship(prodNumNomen); item.apply(); } else if(hasProdNomen === "YES"){ prodNumNomenCheck = prodNumNomen.apply(); cnt = prodNumNomenCheck.getItemCount(); } But I would rather update the properties on the Relationship item. Thanks for the help. Scott
