Variant Management

Hello Team,

I have below Part BOM structure.

By using Variant Management I can filter out P2,P3,P4 Parts but if I want to filter the sub assembly parts like P2.1, P2.2, P2.3, P2.4 based on features option selection based on configuration how to do it? If I'm selecting P2 Part then by default all child parts are rendering.

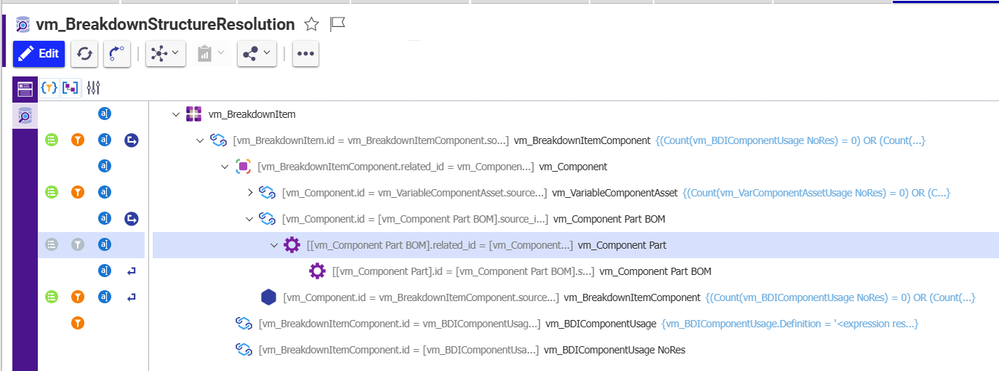

I checked the vm_BreakdownStructureResolution query definition but unable to find out any filter criteria for subassembly level.



Regards,

Suhas







1 Reply

  • mconstantin_aras_com's avatar
    mconstantin_aras_com
    Creator I
    1 hour ago

    Hi
    I guess only your upper assembly are Variant Controlled, and your sub assembly are just Common Component, so they are always valid when the Assembly above is shown.
    regards
