How do you import Excel BOM data into Aras Innovator open version?
Hello, I currently use the open, free version of Aras Innovator and am having difficulty figuring out how to store BOM data within the tool. I have seen from other posts that subscribers have access to a direct import functionality and also some kind of batch loader. For the latest free version of ARAS, what are the exact steps to import an excel file containing BOM data into Aras? Any help would be greatly appreciated.
How to set Default value thru office connector
Hi, I have to set default value for some of the properties thru office connector, I tried in "MSO_SaveDocument" this method, but value is not getting set on document. (I don't want to map this property with office connector). itemToSave.setProperty("name","Auto Generated"); itemToSave.setProperty("language","en"); itemToSave = itemToSave.apply(); Is there any other approach. Regards, Maddy.
Batchloading multiple Document items - but some reference/link to others via template_file_container. Possible to batchload all documents and their dependent items in one go?
Hey all, I am developing a batchloading schema for uploading template files. Pretty straightforward, here is my AML for a simple document load: <AML> <Item type="Document" action="add"> <name>@1</name> <description>@2</description> <state>@3</state> <classification>@4</classification> <authoring_tool>@5</authoring_tool> <is_template>@9</is_template> <Relationships> <Item type="Document File" action="add"> <related_id> <Item type="File" action="add"> <actual_filename>@6</actual_filename> <filename>@7</filename> </Item> </related_id> </Item> </Relationships> </Item> </AML> However, I am trying to utilize template file containers for office connector templates. Template file container is a property on the document itemtype that lets a template document item to reference another template document item in order to reference and "use" its file. Useful if you want to have templates across multiple document classifications without adding the file individually to all those differently classified template doc items. I have about 10 templates and about 20 document classifications, so wanted to create around 200 document items (templates) but have only 10 hold the actual files, and 190 just reference the 10 via template_file_container property. A few questions: Am I able to accomplish this in one batchload procedure/one AML script? How do I write the AML for the latter document items to reference the file-holding document items? I imagine it is something like:<template_file_container></template_file_container>, but will the code require the actual item code (BFA3BE03444448F5916133D874712CF4 or something similar) or is there a way to use the name/item numbers? Or is there a way to easily find the item code of the created template-holding document items from earlier in the "batchloading process"? And if so, how would I go about writing that? What would be the most robust and simplest script I can write to accomplish my goals?
Instruction: Hiding the Open in Office Button
Hello everyone, Here is a short instruction on how to hide the Open in Office (Microsoft Office Connector) Button when viewing document items. This can be done without uninstalling / disabling MSO in case you want to prevent users from using the Toolbar Action button. Before: After: This can be achieved by taking these steps: Go to the root \Innovator installation directory of your Innovator instance Navigate to \Innovator\Client\styles Append common.min.css with the following CSS: [data-id="MSO_OpenInOfficeMenuButton"]{display: none!important;} I recommend also updating the regular common.css file with the same CSS but indented Save, clear browser cache and reload the Innovator webpage I hope this helps. All the best from Almelo. DaanOffice Connector with Document Sequencing Not Working
When attempting to create or open a document in Office Application and save to Aras we get the following error, and none of the Document Dialog files are editable expect the Document Type: "Document Type "Document" is not configured properly for use with Office Connector (Number is defined as Sequence). Please Contact your Administrator." The Office Connector is installed, and configured for Sequencing in the Office Connector Settings: Document Numbering = Sequence Document Numbing Sequence = Default Document The Document Item item_number is also setup to use the Default Document Sequence: What are we missing?
Customization in Office Connector to restrict edit/save from MS office
After installing office connector, While opening the ARAS files from MS office using "Open from ARAS" menu, user can both edit and save the file back to ARAS. Is there any way to restrict the edit and also save access to the files that are opened using the menu. Only view option or access to be enabled to the user for the files opened using "Open from ARAS" menu of open office.
Office Connector: Error with properties when creating document type as per ACE 2019 training
I'm going through the Student Training Guide from ACE 2019 called "Configuring Office Connector: Mapping Properties to/from MS Office Applications" I'm following the instructions on Page 11 to create a new document type for PR (Problem Report). On hitting Save, I get the error: The item_number property of selected ItemType has an incorrect data type ItemType is PR and the item_number property causing the problems is Sequence out of the box, based on the Sequence called PR. I have not changed this from default If I change the item_number property to say, string, then the new Office Connector Document Type can be saved without problem. Is this a bug that has come in since last year? If not, can anyone explain what is going on and why using a Sequence should be a problem? Thank you! TimError while saving Document thru Office Connector

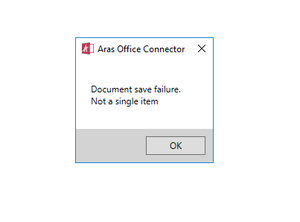

Hi, I'm getting error while saving document thru office connector with normal user, but if I saved Document using root user it is getting saved, I am not able to track from which MSO method I'm getting this error. Please find below Image: Which methods are getting triggered when we save the document thru Office Connector? Regards, Maddy.
