Forum Discussion

Joseph_An's avatar
Joseph_An
Creator II
6 years ago

How to hide 'Pos', 'Lck' and 'Class Path' column in 'Select a Classification' pop-up screen when a user click Technical Class in Part?

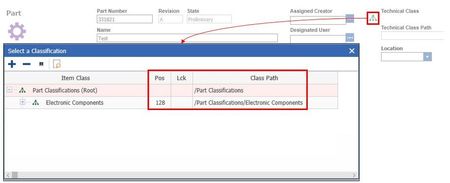

Hi community,  In Part, when we click 'Technical Class', 'Select a Classification' pop-screen is shown as below: We try to hide 'Pos', 'Lck' and 'Class Path' column in that screen and try to show...
greek's avatar
greek
Ideator III
6 years ago

This is the old community project for classification where the grid is defined in an xml-file located in "Client\Solutions\ItemCharacteristicsAndClassification\xml\ItemClassTreeDialog.xml". Just remove the "tgc_View ColumnDef" nodes you dont want.

Joseph_An's avatar
Joseph_An
Creator II
6 years ago

HI plmsteven,

I could be able to hide 'Pos', 'Lck' and 'Class Path' column in that screen.

Would you help how to show 'Description' of Item Class?



Thank you so much for your help.
